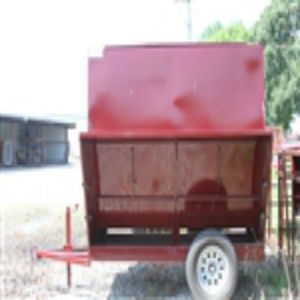

THIS FEEDER IS SUPPORTED BY ONE 3500 LB REINFORCED
AXLE WITH NEW 5 ON 5 BOLT PATTERN WHEELS AND USED OR NEW 15” TIRES. THE TROUGH
IS BROKE AND MADE FROM 11 GA. SHEETS WITH THE TOP AND SIDES BEING BROKE AND
MADE FROM 16 GA. SHEETS. THE TONGUE IS MADE OF 2-7/8” X .190 WALL THICKNESS
PIPE REINFORCED WITH 2-3/8 PIPE WITH A 7/8 HITCH PIN HOOK UP ON THE FRONT AND
ON THE BACK. THE FEEDER HAS 1 DOOR ON THE TOP THAT SLIDES AND LOCKS IN PLACE. IT
ALSO HAS 4 DOORS DOWN THE SIDES TO LIMIT THE AMOUNT OF FEED ALLOWED IN THE
TROUGH. THE UNDERCARRIAGE IS MANUFACTURED OUT OF 3 X 3 X 3/16 ANGLE AND HAS A
7000 # DROP JACK THAT WILL SUPPORT THE FEEDER EASILY WHEN LOADED. THEY ARE
PRIMED AND PAINTED WITH INDUSTRIAL GRADE PAINT AND MEASURES 9’ IN LENGTH AND 8’
TALL. THESE FEEDERS HAVE A CLEAN-OUT TRAY IN THE TROUGH AT THE BACK OF THE FEEDER.
Please contact us for current pricing and availability.
