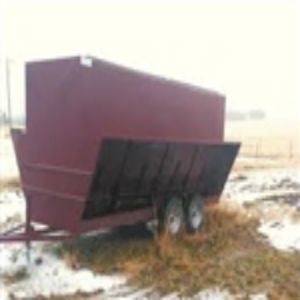

THIS FEEDER IS SUPPORTED BY TWO 3500 LB REINFORCED AXLES
WITH NEW 5 ON 5 BOLT PATTERN WHEELS AND USED OR NEW 15” TIRES. THE TROUGH IS
BROKE AND MADE OF 11 GA. SHEETS WITH THE TOP AND SIDES BROKE AND MADE OF 16 GA.
SHEETS. THE TONGUE IS MADE OF 2-7/8 .190 WALL THICKNESS PIPE REINFORCED WITH 2-3/8
PIPE WITH A 7/8 HITCH PIN HOOK UP ON THE FRONT AND ON THE BACK. THE FEEDER ALSO
HAS 2 DOORS ON THE TOP THAT SLIDE AND LOCK IN PLACE. IT ALSO HAS 8 DOORS DOWN THE SIDES TO LIMIT
THE AMOUNT OF FEED ALLOWED IN THE TROUGH. THE UNDERCARRIAGE IS MANUFACTURED OUT
OF 3 X 3 X 3/16 ANGLE AND HAS A 7000 # DROP JACK THAT WILL SUPPORT THE FEEDER
EASILY WHEN LOADED. THEY ARE PRIMED AND PAINTED WITH INDUSTRIAL GRADE PAINT AND
MEASURE 15’ IN LENGTH AND 8’ TALL.
Please contact us for current pricing and availability.
